Heavy Duty Side-Dress Coulter Assembly Options

Heavy Duty Side-Dress
Assembly Options

 Note: Injector Assembly, Nozzle Holder / Rock Guard Assembly & Knife Mounting Bracket Assembly not included.Clamps Are Not Included With Coulter.
  NSD347HDY 20″ HEAVY-DUTY (24″ LONG) SIDE-DRESS COULTER ASSEMBLY without BLADE
NSD346sidedressassemblythm  HDSTRAIGHTSHANKthm

Includes:

  • NSD346 COULTER SUB-ASSEMBLY
  • N344Y 1×3 x 24″ HEAVY DUTY STRAIGHT COULTER SHANK

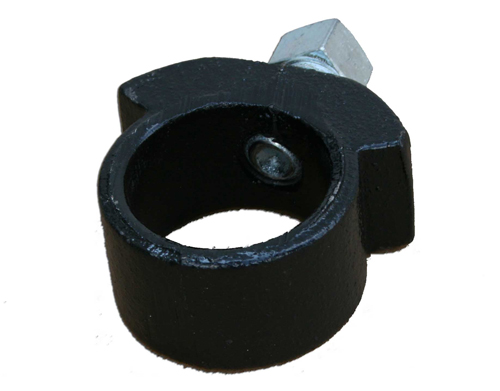

  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
 wt.  lbs.
  NSD347HD w/ N342 Assembly 20″ HEAVY-DUTY (24″ LONG) SIDE-DRESS COULTER WITH BLADE
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344Y 1×3 x 24″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″x 4.5mm RIPPLE BLADE
wt. lbs.
  NSD347HD w/ N342-R5 Assembly 20″ HEAVY-DUTY (24″ LONG) SIDE-DRESS COULTER WITH BLADE
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344Y 1×3 x 24″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″x 5mm RIPPLE BLADE
wt.  lbs.
  NSD347HD w/ N342-SE Assembly 20″ HEAVY-DUTY (24″ LONG) SIDE-DRESS COULTER WITH BLADE
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344Y 1×3 x 24″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″x 4mm STRAIGHT EDGE RIPPLE BLADE
wt. lbs.
  NSD347HD w/ N342-P Assembly 20″ HEAVY-DUTY (24″ LONG) SIDE-DRESS COULTER WITH BLADE
NSD347withN342Plainthm  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344Y 1×3 x 24″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″x 4mm PLAIN BLADE
wt.  lbs.
  NSD347HDLY Assembly without Blade 20″ HEAVY-DUTY (27″ LONG) SIDE-DRESS COULTER
NSD346sidedressassemblythm  HDSTRAIGHTSHANKthm

Includes:

  • NSD346 COULTER SUB-ASSEMBLY
  • N344LY 1×3 x 27″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
 wt.  lbs.
  NSD347HDL w/ N342 Assembly 20″ HEAVY-DUTY (27″ LONG) SIDE-DRESS COULTER
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344LY 1×3 x 27″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″x 4.5mm RIPPLE BLADE
wt. lbs.
  NSD347HDL w/ N342-R5 Assembly 20″ HEAVY-DUTY (27″ LONG) SIDE-DRESS COULTER
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344LY 1×3 x 27″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″x 5mm RIPPLE BLADE
wt.  lbs.
  NSD347HDL w/ N342-SE Assembly 20″ HEAVY-DUTY (27″ LONG) SIDE-DRESS COULTER
N347-Coulter thumbnail  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344LY 1×3 x 27″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″x 4mm STRAIGHT EDGE RIPPLE BLADE
wt. lbs.
  NSD347HDL w/ N342-P Assembly 20″ HEAVY-DUTY (27″ LONG) SIDE-DRESS COULTER
NSD347withN342Plainthm  HDSTRAIGHTSHANKthm

Includes:

  • NSD346  COULTER SUB-ASSEMBLY
  • N344LY 1×3 x 27″ HEAVY DUTY STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″x 4mm PLAIN BLADE
20″ Plain Blade wt.  lbs.
