N346 Series Coulter Assembly Options

N346 Assembly Options

  • High Quality Ductile Castings
  • Nylon Bushing at Pivot Points (no need to grease)
  • Spring Loaded, 500# Pre-Load Down Pressure, 1200# Max.
  • 1 1/2″ Hi-Tensile Steel Shaft
  • Special Seal on Hub to prevent dirt and water from getting into bearings
  • Mounts on most Implements and Toolbars
  • Wide Variety of Coulter Blades Available

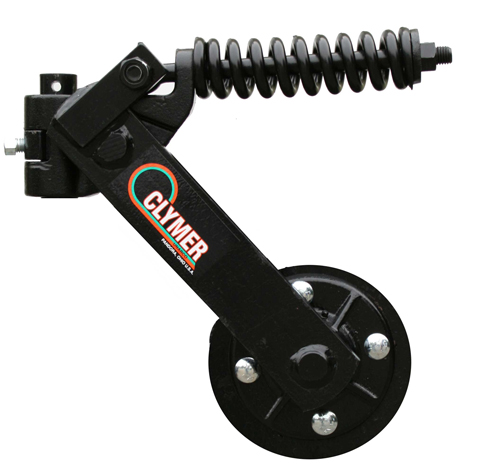

  N346 STANDARD COULTER SUB-ASSEMBLY

Includes:

  • N346  COULTER SUB-ASSEMBLY
Coulter Sub-Assembly wt. 35 lbs.
  N346Y STANDARD COULTER SUB-ASSEMBLY with LOCKING COLLAR & BOLT SACK

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
Coulter Sub-Assembly wt. 37 lbs.
  N347Y STANDARD 20″ COULTER ASSEMBLY without BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
Coulter Sub-Assembly  wt. 48 lbs.
  N347 w/ N342 STANDARD COULTER ASSEMBLY with 20″ x 4.5mm RIPPLE BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″ RIPPLE BLADE
20″ Ripple Blade wt. 63 lbs.
  N347 w/ N342-R5 STANDARD COULTER ASSEMBLY with 20″ x 5.0mm RIPPLE BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″ RIPPLE BLADE
20″ Ripple Blade wt. 63 lbs.
  N347 w/ N342-SE STANDARD COULTER ASSEMBLY with 20″ STRAIGHT EDGE RIPPLE BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-SE  20″ STRAIGHT EDGE RIPPLE BLADE
20″ Straight Edge Ripple Blade  wt. 63 lbs.
  N347 w/ N342-P STANDARD COULTER ASSEMBLY with 20″ PLAIN BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-P  20″ PLAIN BLADE
20″ Plain Blade  wt. 63 lbs.
  N347 w/ N342-SE STANDARD COULTER ASSEMBLY with 17″ RIPPLE BLADE


Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ STRAIGHT COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-SE  20″ RIPPLE BLADE
17″ Ripple Blade wt. 58 lbs.
  N348Y OFFSET 20″ COULTER ASSEMBLY without BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
Coulter Sub-Assembly  wt. 50 bs.
  N348 w/ N342 OFFSET COULTER ASSEMBLY with 20″ x 4.5mm RIPPLE BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″ RIPPLE BLADE
20″ x 4.5mm Ripple Blade  wt. 65 bs.
  N348 w/ N342-R5 COULTER ASSEMBLY with 20″ x 5.0mm RIPPLE BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-R5  20″ RIPPLE BLADE
20″ x 5.0mm Ripple Blade  wt. 65 bs.
  N348 w/ N342-SE OFFSET COULTER ASSEMBLY with 20″ STRAIGHT EDGE RIPPLE BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342-SE  20″ STRAIGHT EDGE RIPPLE BLADE
20″ Straight Edge Ripple Blade  wt. 63 bs.
  N348 w/ N342-P OFFSET COULTER ASSEMBLY with 20″ PLAIN BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N342  20″ PLAIN BLADE
20″ Plain Blade  wt. 63 bs.
  N348 w/ N339 OFFSET COULTER ASSEMBLY with 17″ RIPPLE BLADE

Includes:

  • N346 COULTER SUB-ASSEMBLY
  • N343  1-1/2″ x 22″ OFFSET COULTER SHANK
  • N347-2  LOCKING COLLAR (30 degree)
  • N346S  BOLT SACK
  • N339-R  17″ RIPPLE BLADE
17″ Ripple Blade  wt. 60 bs.
