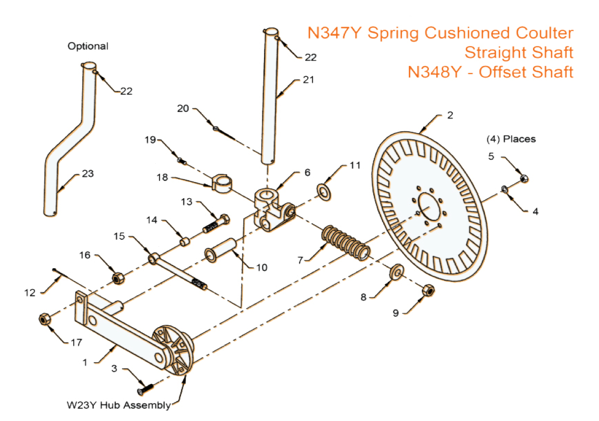

| PART NO. | DESCRIPTION | RETAIL | |
| 1 | N347-47 | SWING ARM WITH HUB ASSY. | $149.81 |
| * | N347-47 | SWING ARM (WELDED ASSY.) | $78.28 |
| * | W23Y | HUB ASSY. | $69.43 |
| Includes: | (W23-L, (2) W32 & W50) | ||
| * | W130 | 1 5/8″ X 4 5/16″ SPINDLE | $20.31 |
| * | W130Y | SPINDLE ASSY. | $26.99 |
| Includes: | (W130, W70, W60 & FPC497) | ||
| 2 | N342 | 20′ RIPPLED COULTER BLADE | $43.85 |
| 3 | FBC0806 | 1/2″ X 1 1/2″ CARRIAGE BOLT | $0.59 |
| 4 | FW308 | 1/2″ LOCK WASHER | $0.12 |
| 5 | FNH08 | 1/2″ HEX NUT | $0.16 |
| 6 | N347-1 | HINGE CASTING | $41.60 |
| 7 | S233 | COULTER SPRING | $27.69 |
| 8 | N347-3 | SPRING BUSHING CASTING | $6.67 |
| 9 | FNL12 | 3/4″ LOCK NUT | $0.63 |
| 10 | N347-6 | FLANGED BUSING | $2.48 |
| 11 | FWM18 | 1 1/4″ X 1/8″ MACHINE BUSHING | $0.91 |
| 12 | FPC505 | 1/4″ X 2″ COTTER PIN | $0.22 |
| 13 | FBH1212-NF | 3/4″ X 3″ HEX BOLT (FINE THREAD) | $2.89 |
| 14 | N347-7 | NYLON BUSHING | $1.21 |
| 15 | N347-5 | SPRING ROD | $22.18 |
| 16 | FNH12-NF | 3/4″ HEX NUT (FINE THREAD) | $0.46 |
| 17 | FNL12-NF | 3/4″ LOCK NUT (FINE THREAD) | $0.60 |
| 18 | N347-2 | LOCKING COLLAR | $11.98 |
| 19 | FBS1004 | 5/8″ X 1″ SET BOLT | $0.91 |
| 20 | FPC510 | 5/16″ X 3″ COTTER PIN | $0.39 |
| 21 | N343 | 1 1/2″ X 22″ STRAIGHT SHAFT | $47.29 |
| 22 | FPR0612 | 3/8″ X 2 1/2″ ROLL PIN | $0.72 |
| 23 | N345 | 1 1/2″ X 22″ OFFSET SHAFT (OPTIONAL) | $54.43 |
