Coulter Injection Options – Bolt-On

Coulter Fertilizer Injection

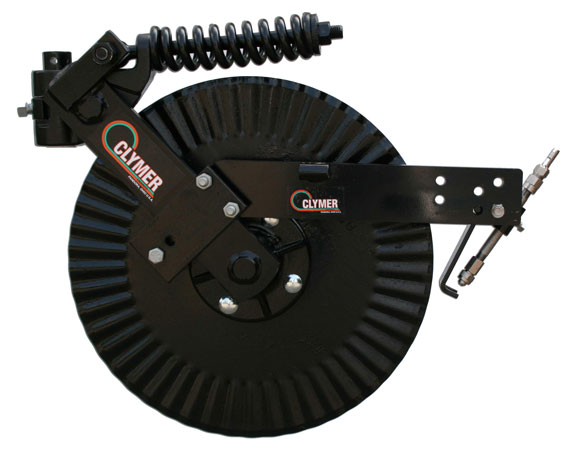

Bolt-On Coulter Injection Options for N346 Series Coulter

  • Coulter fertilizer injection – Durable & Heavy-Duty
  • Fertilizer Injection / Fertilizer Applications Systems
  • Coulters with Nitrogen Injection Systems
  • Reliable coulter injection for commercial fertilizer application
  • Mounts to most farm equipment implements & toolbars
  • Spring loaded injection system with rock guard
  • Sealed coulter hub to protect bearings

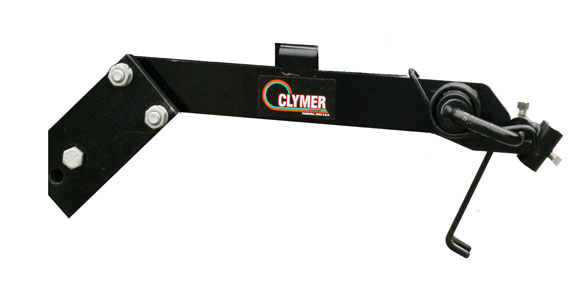

  COI100 BOLT-ON SPRING-LOADED STREAM INJECTION BRACKET ASSEMBLY

Includes:

  • COI100  COULTER INJECTION BRACKET WITHOUT INJECTOR NOZZLE ASSEMBLY, TIP & CHECK VALVE
Coulter Injection Bracket – Spring Loaded  wt. 12 lbs.

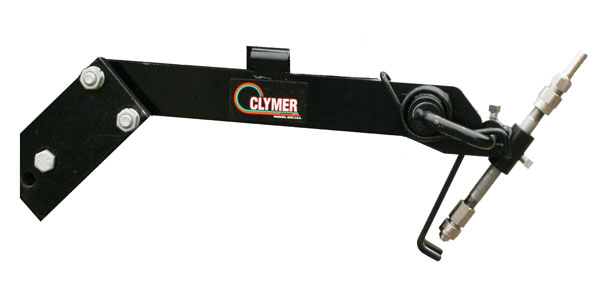

  COI100Y BOLT-ON SPRING-LOADED STREAM INJECTION BRACKET ASSY w/ STAINLESS STEEL INJECTOR & POLY CHECK VALVE

Includes:

  • COI100  COULTER INJECTION BRACKET ASSEMBLY
  • COI100-8Y  INJECTOR ASSEMBLY with #15 TIP
  • C-25CV  POLY CHECK VALVE
Bolt-On Spring-Loaded Stream Injection Bracket Assembly w/ Stainless Steel Injector & Poly Check Valve  wt. 13 lbs.
  COI100Y BOLT-ON SPRING-LOADED STREAM INJECTION BRACKET ASSY w/ STAINLESS STEEL INJECTOR & POLY CHECK VALVE

Includes:

  • COI100  COULTER INJECTION BRACKET ASSEMBLY
  • COI100-8Y  INJECTOR ASSEMBLY with #15 TIP
  • C-25CV  STAINLESS STEEL CHECK VALVE
Bolt-On Spring-Loaded Stream Injection Bracket Assembly w/ Stainless Steel Injector & Stainless Steel Check Valve  wt. 13 lbs.

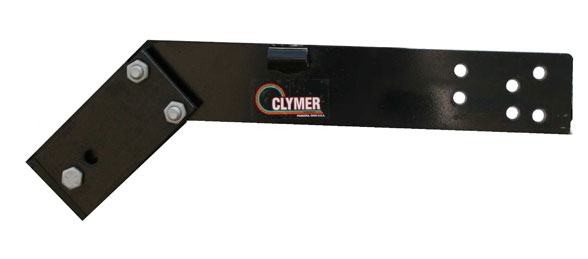

  COI110 BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY

Includes:

  • COI110  BOLT-ON INJECTION BRACKET WITHOUT KNIFE or INJECTOR MOUNTING ASSEMBLIES
Bracket Assembly  wt. 12 lbs.

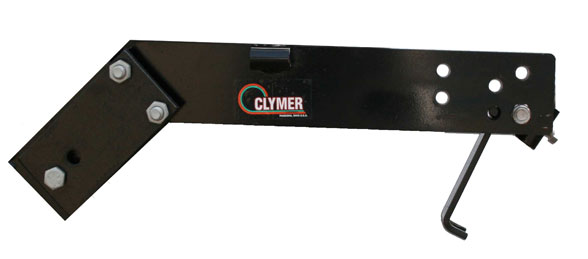

  COI110 BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY with COI200

Includes:

  • COI110  BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY
  • COI200  BOLT-ON STREAM INJECTION BRACKET WITHOUT INJECTOR
Bracket Assembly with CO1200  wt. 14 lbs.

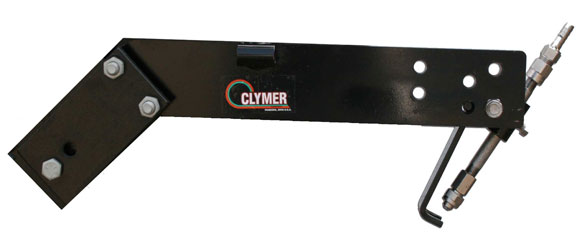

  COI110 BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY with COI200Y

Includes:

  • COI110  BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY
  • COI200  BOLT-ON STREAM INJECTION BRACKET
Bracket Assembly w/ CO1200Y Assembly & Poly Check Valve  wt. 14 lbs.
  COI110 BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY with COI200Y-SS

Includes:

  • COI110  BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY
  • COI200  BOLT-ON STREAM INJECTION BRACKET
  • COI100-8Y  INJECTOR ASSEMBLY with #15 TIP
Bracket Assembly w/ CO1200Y-SS Assembly & Stainless Steel Check Valve  wt. 14 lbs.

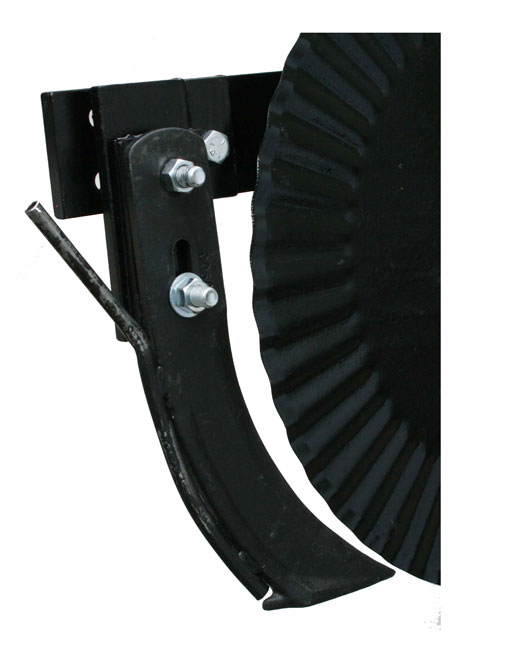

  COI110N393 BOLT-ON KNIFE INJECTION BRACKET ASSEMBLY (Shown with optional knife)

Includes:

  • COI110  BOLT-ON KNIFE or STREAM INJECTION BRACKET ASSEMBLY
  • N393Y  BOLT-ON CO-50 KNIFE MOUNTING BRACKET
Knife Injection w/ Bracket Assembly  wt. 18 lbs.

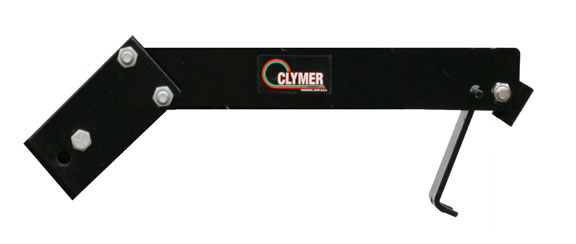

  COI120 BOLT-ON STREAM INJECTION BRACKET ASSEMBLY

Includes:

  • COI120  BOLT-ON STREAM INJECTION MOUNTING BRACKET
  • COI200 BOLT-ON STREAM INJECTION BRACKET WITHOUT INJECTOR
Stream Injection Bracket Assembly  wt. 12 lbs.
  COI120Y BOLT-ON STREAM INJECTION BRACKET ASSEMBLY with POLY CHECK VALVE

Includes:

  • COI120  BOLT-ON STREAM INJECTION MOUNTING BRACKET
  • COI200 BOLT-ON STREAM INJECTION BRACKET
  • COI100-8Y  INJECTOR ASSEMBLY with #15 TIP
  • C-25CV  POLY CHECK VALVE
Stream Injection Bracket Assembly w/ Poly Check Valve  wt. 12 lbs.

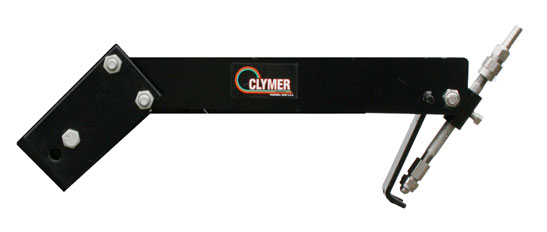

  COI120Y-SS BOLT-ON STREAM INJECTION BRACKET ASSEMBLY w/ STAINLESS STEEL CHECK VALVE

Includes:

  • COI120  BOLT-ON STREAM INJECTION MOUNTING BRACKET
  • COI200 BOLT-ON STREAM INJECTION BRACKET
  • COI100-8Y  INJECTOR ASSEMBLY with #15 TIP
  • CSS-25CV  STAINLESS STEEL CHECK VALVE
Stream Injection Bracket Assembly w/ Poly Check Valve  wt. 12 lbs.

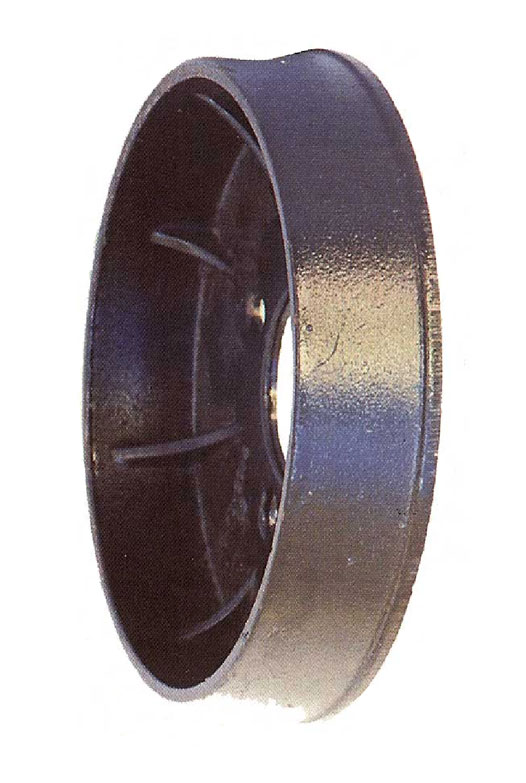

  N349-DS DUCTILE STEEL DEPTH SPOOL
  • Made from heavy-duty ductile steel to resist damage from rocks and heavy dirt clods
  • Tapered for self-cleaning
  • Allows fit of 5″ and 5-1/4″ four bolt pattern coulter blade  applications without adding additional mounting kits.
  • Provides consistent coulter and knife depth while protecting bearings from excessive abuse.
Depth Spool wt. 16 lbs.
